Understanding the Basics of Slewing Bearings

When it comes to heavy machinery and equipment, slewing bearings play a crucial role in ensuring smooth and efficient operation. But what exactly are slewing bearings, and why are they important? In this article, we will dive into the fundamentals of slewing bearings, exploring their components, functions, and applications. Whether you're new to the world of machinery or just looking to brush up on your knowledge, this guide will provide a clear and concise overview.

At its core, a slewing bearing is a type of rotational rolling-element bearing that supports axial, radial, and moment loads. These bearings are essential for allowing rotary motion between two parts, typically in heavy machinery like cranes, excavators, and wind turbines. Slewing bearings are designed to handle large loads and provide smooth rotational movement, making them indispensable in various industrial applications.

Key Components of Slewing Bearings

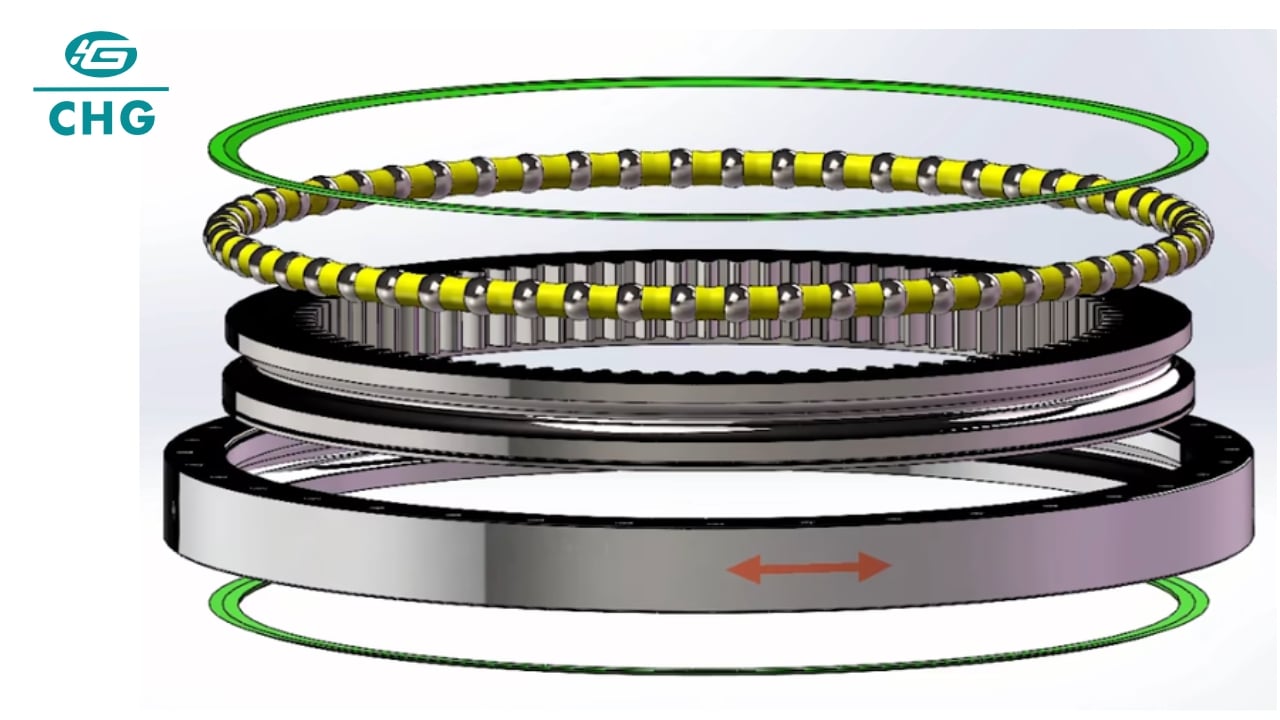

A slewing bearing typically consists of an inner ring, an outer ring, rolling elements (usually balls or rollers), and separators or spacers. These components work together to facilitate smooth rotation and load distribution. The inner and outer rings are made of high-strength materials to withstand heavy loads and provide long-lasting performance.

How Do Slewing Bearings Work?

Slewing bearings operate by allowing two surfaces to rotate relative to each other. The rolling elements, housed between the inner and outer rings, reduce friction and enable smooth movement. When a load is applied, the rolling elements distribute the load across the bearing, minimizing wear and tear and ensuring reliable operation. The design of slewing bearings allows them to handle combined loads, including axial (vertical), radial (horizontal), and tilting moments.

Types of Loads

Axial Load: This is the load applied parallel to the axis of rotation. Slewing bearings are designed to handle significant axial loads, making them ideal for applications like cranes and wind turbines.

Radial Load: This is the load applied perpendicular to the axis of rotation. Slewing bearings can also manage radial loads, which are common in machinery that experiences lateral forces.

Moment Load: Also known as tilting moment, this load occurs when there is an eccentric force applied, causing the bearing to experience a bending moment. Slewing bearings are constructed to withstand moment loads, ensuring stability and performance.

Applications of Slewing Bearings

Slewing bearings are versatile components used in a wide range of applications. Here are some common industries and equipment where slewing bearings are essential:

Construction Machinery

In construction equipment such as cranes, excavators, and loaders, slewing bearings enable the rotation of heavy loads. These bearings allow for precise movement and positioning, enhancing the efficiency and safety of construction operations.

Renewable Energy

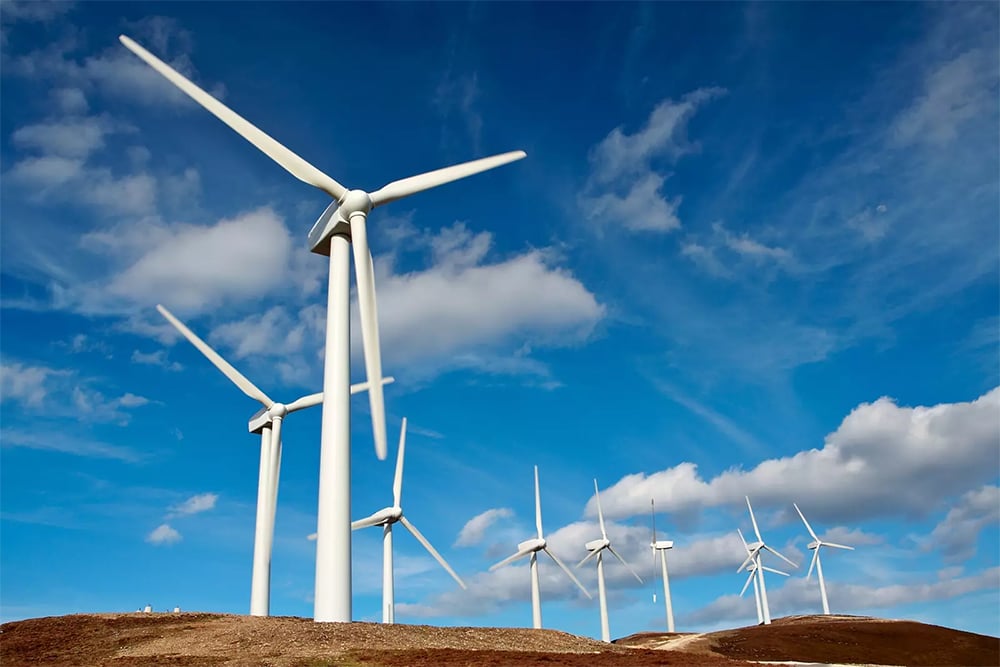

In wind turbines, slewing bearings are used to adjust the position of the blades and ensure optimal energy capture. The ability to handle large axial and moment loads makes slewing bearings ideal for these dynamic applications.

Material Handling

Slewing bearings are crucial in material handling equipment like forklifts and conveyor systems. They provide smooth rotation and load support, enabling efficient movement and transportation of goods.

Marine and Offshore

In marine and offshore applications, slewing bearings are used in cranes, winches, and other equipment that requires reliable rotation under harsh conditions. Their robust design and load-handling capabilities make them suitable for challenging environments.

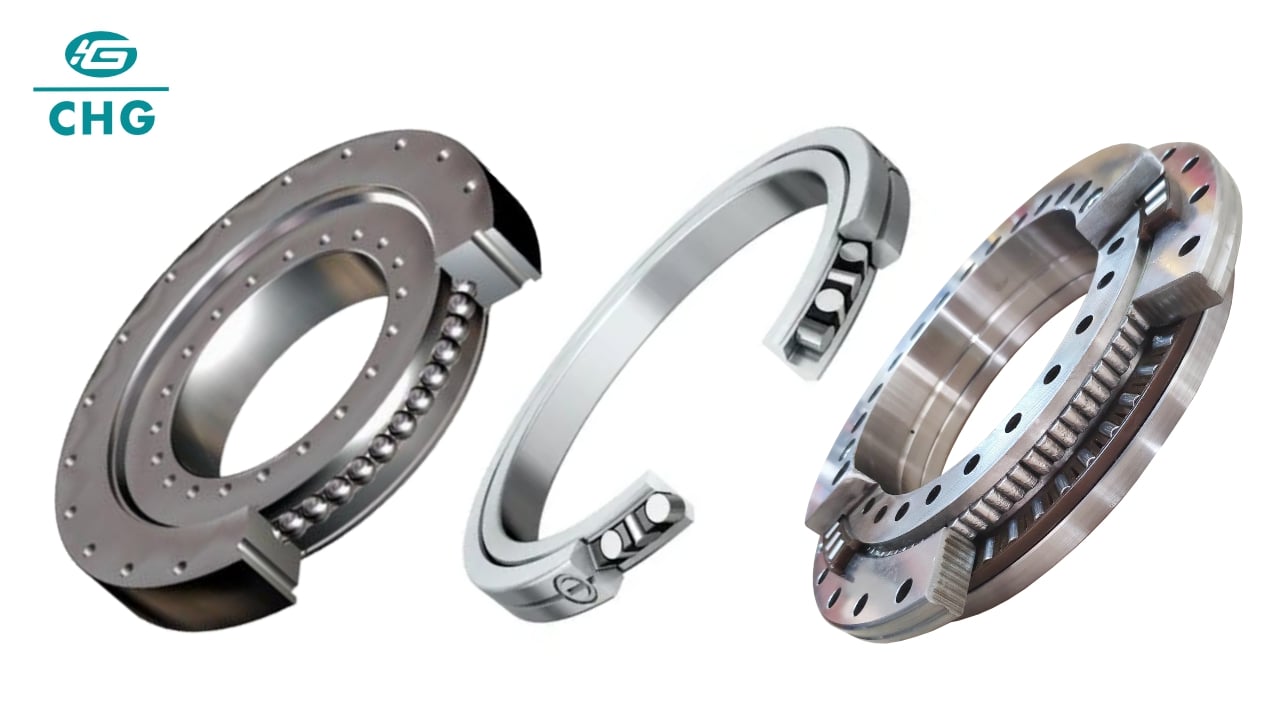

Types of Slewing Bearings

Slewing bearings come in various designs to suit different applications. The most common types include:

Single-Row Ball Slewing Bearing

This type features a single row of balls, providing a compact design with high load-carrying capacity. Single-row ball slewing bearings are often used in applications with moderate loads and where space is limited.

Double-Row Ball Slewing Bearing

With two rows of balls, this type offers increased load capacity and stability. Double-row ball slewing bearings are suitable for applications that require handling higher loads and moments.

Crossed Roller Slewing Bearing

Crossed roller bearings consist of cylindrical rollers arranged in a cross pattern. This design allows for precise rotation and high load capacity, making them ideal for applications requiring high accuracy and rigidity.

Three-Row Roller Slewing Bearing

This type features three rows of rollers, providing maximum load capacity and stability. Three-row roller slewing bearings are used in heavy-duty applications where large axial and radial loads are present.

Maintenance and Care

To ensure the longevity and performance of slewing bearings, regular maintenance is essential. Here are some key maintenance tips:

Lubrication: Proper lubrication reduces friction and wear. It's important to use the recommended lubricant and follow the manufacturer's guidelines for lubrication intervals.

Inspection: Regularly inspect slewing bearings for signs of wear, corrosion, or damage. Early detection of issues can prevent costly repairs and downtime.

Alignment: Ensure that the bearing is properly aligned during installation and operation. Misalignment can lead to uneven load distribution and premature failure.

Environmental Protection: Protect slewing bearings from contaminants such as dust, water, and chemicals. Using seals and covers can help prevent contamination and extend the bearing's life.

Conclusion

Slewing bearings are vital components in many industries, providing the necessary support and rotation for heavy machinery. Understanding their functions, types, and applications helps in selecting the right bearing for your needs. With proper maintenance and care, slewing bearings can offer reliable performance and contribute to the efficiency and safety of your operations. Whether you're in construction, renewable energy, or any other field, slewing bearings are essential for achieving smooth and efficient rotational movement in your equipment.
