In high-load industrial sectors such as metallurgical rolling mills, mining equipment, and paper machinery, bearings must withstand not only significant radial and axial loads but also demonstrate excellent shock resistance and rigidity. In such demanding environments, four-row tapered roller bearings have become key components in many large-scale machines thanks to their superior structural design and outstanding load capacity.
Structural Features and Working Principle
Four-row tapered roller bearings consist of two double-row bearing sets arranged symmetrically. The inner ring is typically an integral structure, while the outer rings are separable. This design effectively supports radial loads and axial loads in both directions, while also providing precise axial positioning.
Typical structural characteristics include:
Symmetrical multi-row roller arrangement for uniform load distribution and reduced edge wear
Separable outer ring for ease of installation and maintenance
Flexible bearing direction adjustment according to the direction of load
Suitable for both open and sealed configurations
Performance Advantages
Four-row tapered roller bearings offer extremely high load capacity, making them especially suitable for applications involving continuous operation, frequent shock loads, and heavy-duty stress. Their high rigidity, stable structure, and strong vibration resistance help prevent axial displacement and ensure smooth equipment operation.
In addition, the optimized line contact design of the rollers allows for efficient load distribution, minimizing localized wear and extending bearing life. The separable structure also simplifies installation, disassembly, and lubrication maintenance, significantly improving equipment serviceability and reliability.
Typical Applications
Four-row tapered roller bearings are widely used in the following fields:

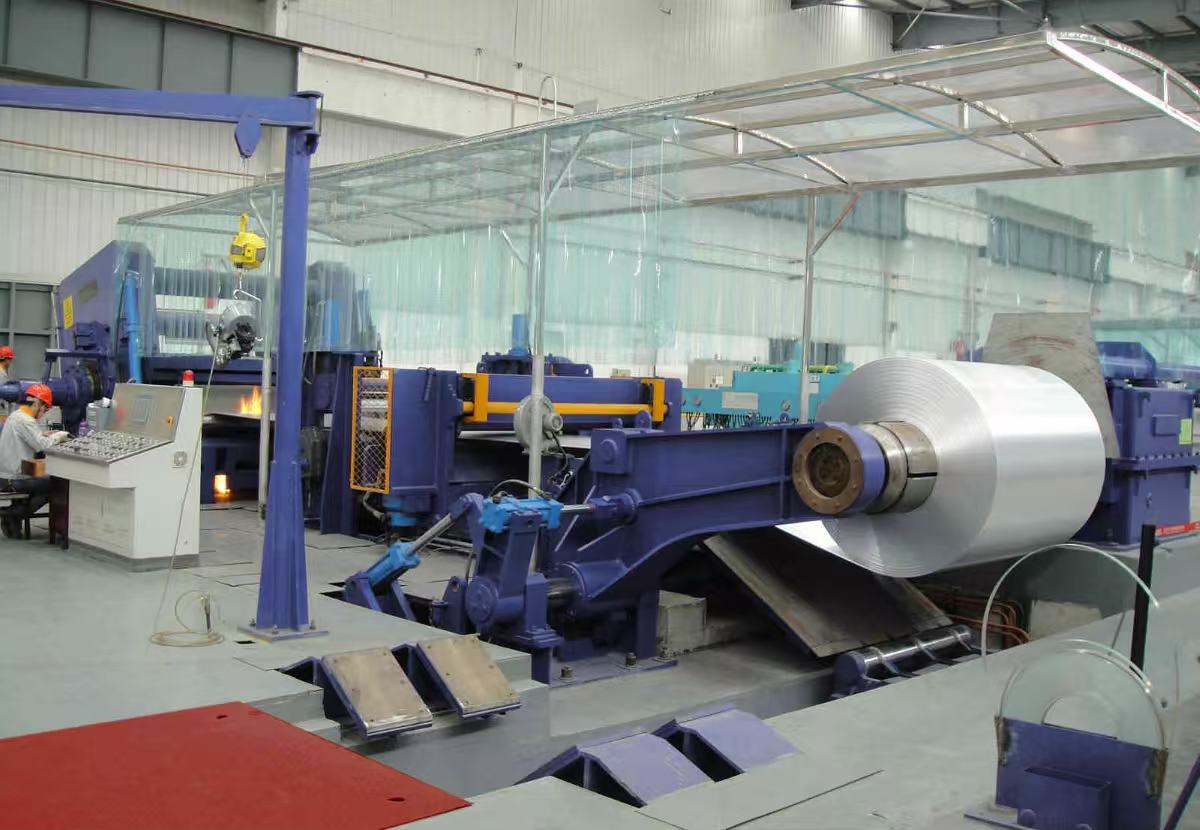

Main spindles of steel rolling mills (work rolls and backup rolls in hot and cold rolling)
Continuous casting machines
Heavy-duty gear transmission systems
Large paper machine calender and dryer rolls
Mining machinery and metal-forming equipment
Their stability and high load-bearing performance make them an ideal replacement for standard roller bearings in heavy-duty environments.
Selection and Usage Recommendations
When selecting four-row tapered roller bearings, several key factors should be carefully considered, including axial load direction, installation configuration, operating temperature, and lubrication method.
Choose structural type based on working conditions: oil-lubricated or grease-lubricated, sealed or open
Fully assess axial load direction to determine proper roller arrangement
Ensure proper assembly precision to avoid axial displacement of the inner ring and maintain optimal clearance
Regularly replace lubricating grease or oil to prevent roller seizure and prolong service life
Conclusion
As an ideal bearing solution for heavy-load, high-speed, and high-temperature environments, four-row tapered roller bearings play a critical role across many demanding industries. With exceptional load capacity and proven reliability, they are a trusted choice for main shaft bearing applications requiring durability and stability.
If you would like to learn more about available models, technical drawings, or application cases, feel free to contact us for detailed information and expert support.
